Iron remover
Rcdb series of electromagnetic iron remover is an efficient, environmental friendly and energy-saving iron remover with strong attraction generated by electromagnetic coil. The excitation coil is naturally cooled, and the internal part is poured with epoxy resin specially used for electrical engineering. It is dust-proof, rain proof, corrosion-resistant, low temperature rise, deep magnetic permeability and strong suction. It works stably and reliably in extremely bad environment.
Product Name: RCD type hanging electromagnetic iron remover
Rcdb series of electromagnetic iron remover is an efficient, environmental friendly and energy-saving iron remover with strong attraction generated by electromagnetic coil. The excitation coil is naturally cooled, and the internal part is poured with epoxy resin specially used for electrical engineering. It is dust-proof, rain proof, corrosion-resistant, low temperature rise, deep magnetic permeability and strong suction. It works stably and reliably in extremely bad environment.
This series of products can be used with various types of belt conveyor, vibration conveyor, blanking pipe and other conveying equipment. It can remove the ferromagnetic material mixed in the non-magnetic material with the weight of 0.3 ~ 35kg, and ensure the normal and safe operation of the equipment (grinder, crusher, etc.) in the next process. The product has been widely used in cement, thermal power generation, mining, ceramics, non-metallic minerals, metallurgy, chemical industry, glass, paper, building materials and other industries. It can operate without fault in all kinds of harsh environments for a long time.

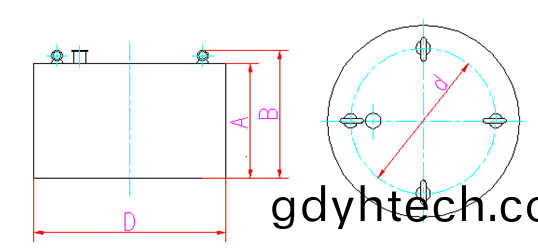

Structural diagram of RCD series hanging electromagnetic iron remover:
主要(yao)技術(shu)蓡數：
project | Adaptive bandwidth | Rated lifting heighthmm | magnetic field intensity | Material thickness | Excitation power | Adaptive band speed≤m/s | Working system |
parameter | |||||||
Model | |||||||
RCDB-4 | 400 | 120 | 50 | 70 | 0.6 | 2.5 | continuity |
RCDB-5 | 500 | 150 | 60 | 100 | 1.0 | ||
RCDB-6 | 600/650 | 180 | 63 | 130 | 1.6 | ||
RCDB-6.5 | 650 | 200 | 70 | 150 | 2.0 | ||
RCDB-8 | 800 | 250 | 70 | 200 | 3.6 | ||
RCDB-10 | 1000 | 300 | 70 | 250 | 5.0 | ||
RCDB-12 | 1200 | 350 | 70 | 300 | 6.8 | ||
RCDB-14 | 1400 | 400 | 70 | 350 | 9.0 | ||
RCDB-16 | 1600 | 450 | 70 | 400 | 13 | ||
RCDB-18 | 1800 | 500 | 70 | 450 | 18 | ||
RCDB-20 | 2000 | 500 | 70 | 500 | 20 |
